TDC-DB02 Hot Sale 700C BWT 45mm Rim Depth 29mm Width Disc Brake Tubeless Compatible

Hot Sale 700C BWT 45mm Rim Depth 29mm Width Disc Brake Tubeless Compatible

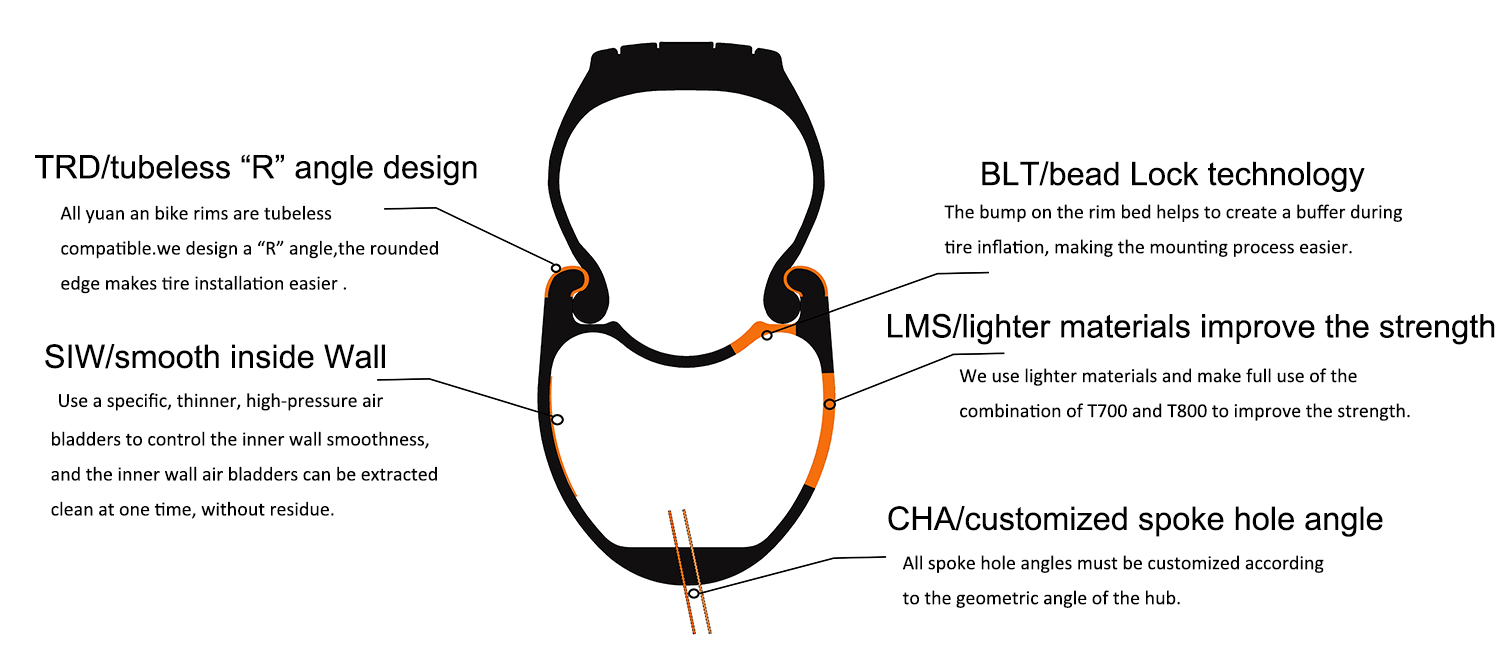

The hot sale BWT is upgraded to a semi-circular arc on the sidewall compared to ordinary wheels, which makes the aerodynamics play better during riding. The air flows along the sidewalls, which also improves the lateral wind resistance.

At the same time, there are three types of clincher, tubeless and tubular. The inner width is 19.5mm can meet the needs of 700*25C-700*38C tires.

The rim brake version has 20 holes for the front wheel and 24 holes for the rear wheel.The disc brake version has 20 holes or 24 holes on the front wheel and 24 holes on the rear wheel.

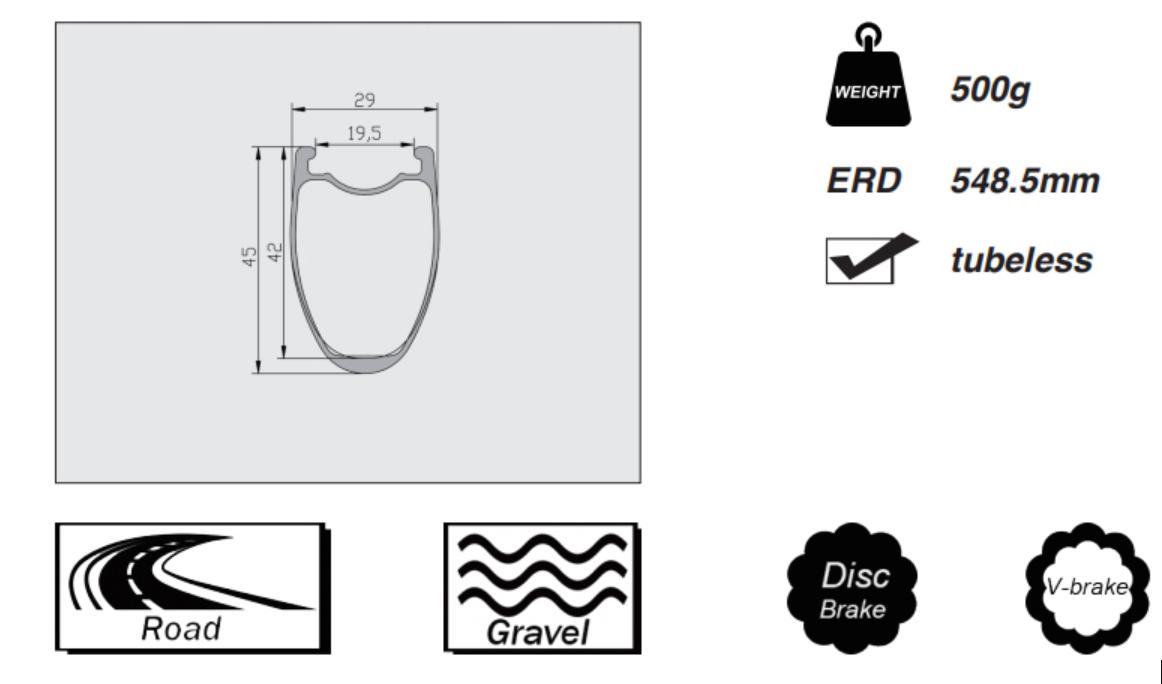

Modle:TDC-DB02

·Size:700C

·Use:Road

·Type:tubeless

·Inner:19.5mm

.Outer Width:29mm

·Depth:45mm

·ERD:548.5mm (not including nipple head dimension)

·Weight:500+/-15g(clincher&tubeless)

·Weight Limit:130kg

.Spoke holes:20/24

·Spoke Hole Angle±7°

·Spoke Tension:100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear

·Tyre Pressure:130psi recommended max

·Tire:25C~38C recommended

Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

Why choose us ?

-Tour De Cycling has more than 17 years of production experience in carbon rims developing and manufacturing.

-Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services.

-More than 100 kinds of rims products have been developed and produced, and more than 95% of them are exported overseas.

FAQ:

Q1: What is your MOQ ?

A1:Minimum order quantity of different non-products is different. For specific products, please consult with inquiry.We can supply samples at a cost of twice the selling price. If you place an order, the sample fee will be refunded.

Q2: How long is the sample lead time?

A2: For existing samples, it takes 15 days.

Q3: How long is the production lead time?

A3: Decide the delivery date of the product according to the quantity ordered,About 15-20 days.

Q4: What format of the file do you need if I want my own design?

A4: We have our own designer in house . So you can provide JPG or PDF,etc.We will make 3D drawing for mold or printing screen for your final confirmation based on technique.

Q5: How many colors are available?

A5: Any color can be provided as long as the color palette you need is provided to us.

Q6: Which kinds of certificate would you have?

A6: Product Patent Certificate. Local certificate of safety standards.

Q7: What is your payment term?

A7: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, pls. pay the balance before shipment. Then delivery the goods.

Q8: What is your material?

A7: It made of carbon fiber rims.
