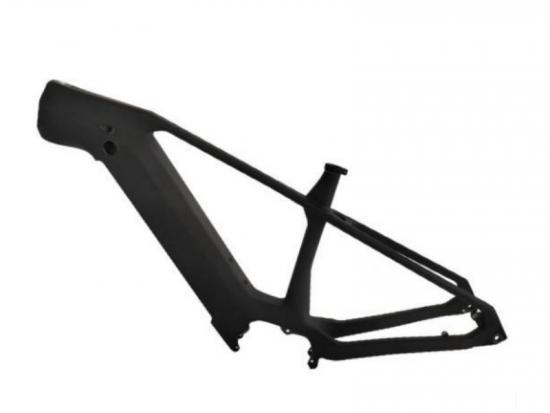

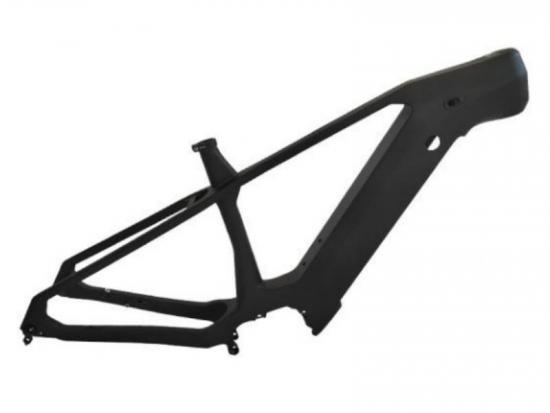

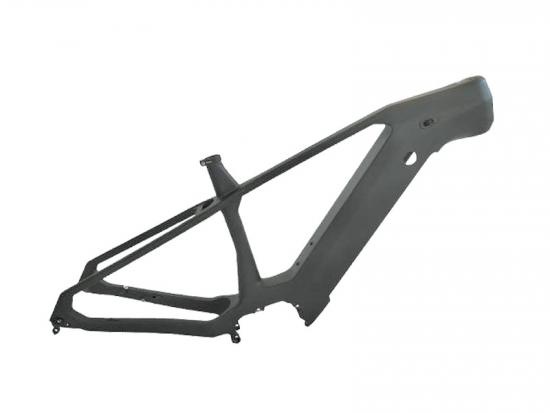

TDC-EM10 Hardtail Carbon Fiber Electric Bike Frame

Hardtail Carbon Fiber Electric Bike Frame

• Type: 29"*2.35" AM Ebike Frame
• Size: 15.5"/17.5"/19"
• Head Tube: Upper 44mm lower 56mm FSA-NO.57
• Weight :2650g±50g

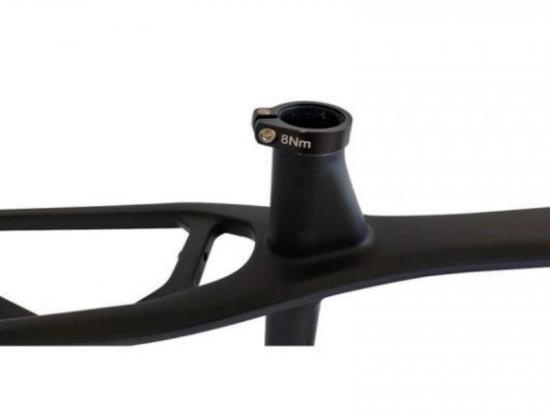

• Seat tube Diameter ：φ31.6mm
• Motor System：bafangM500/M600
• Battery :  REENTION RHINO7 36V*24.5&48V*17.5
• Max Tire Clearance :  29"*2.35"
• Brake Type :  Post Mount Disc brake
• O.L.D: 148mmφ12mm
• Finish ：UD/Color
• Max Chainring：40T
• Test Standard : ISO4210/EN15194

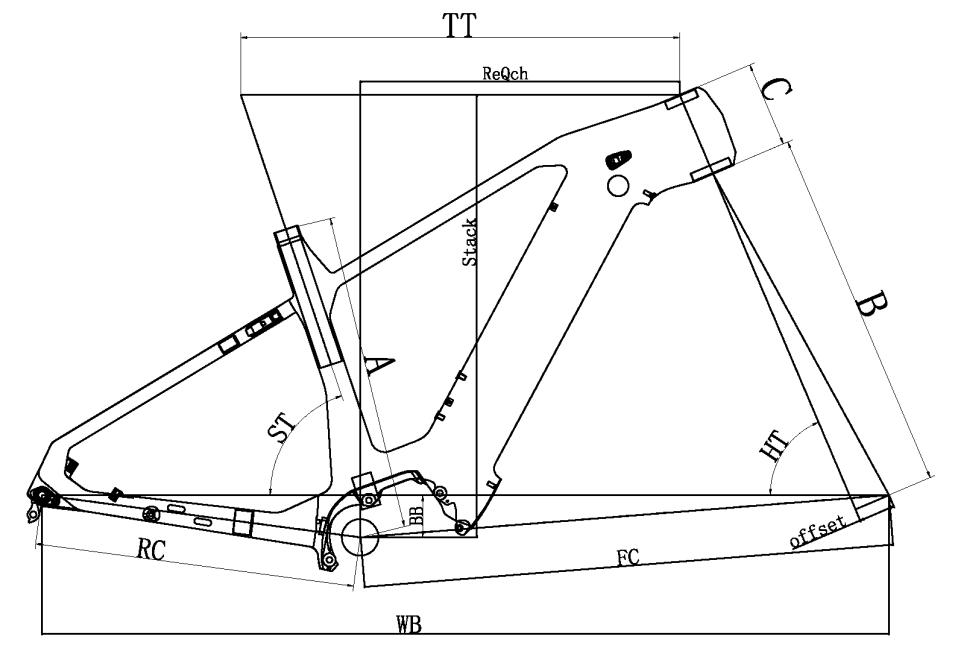

Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

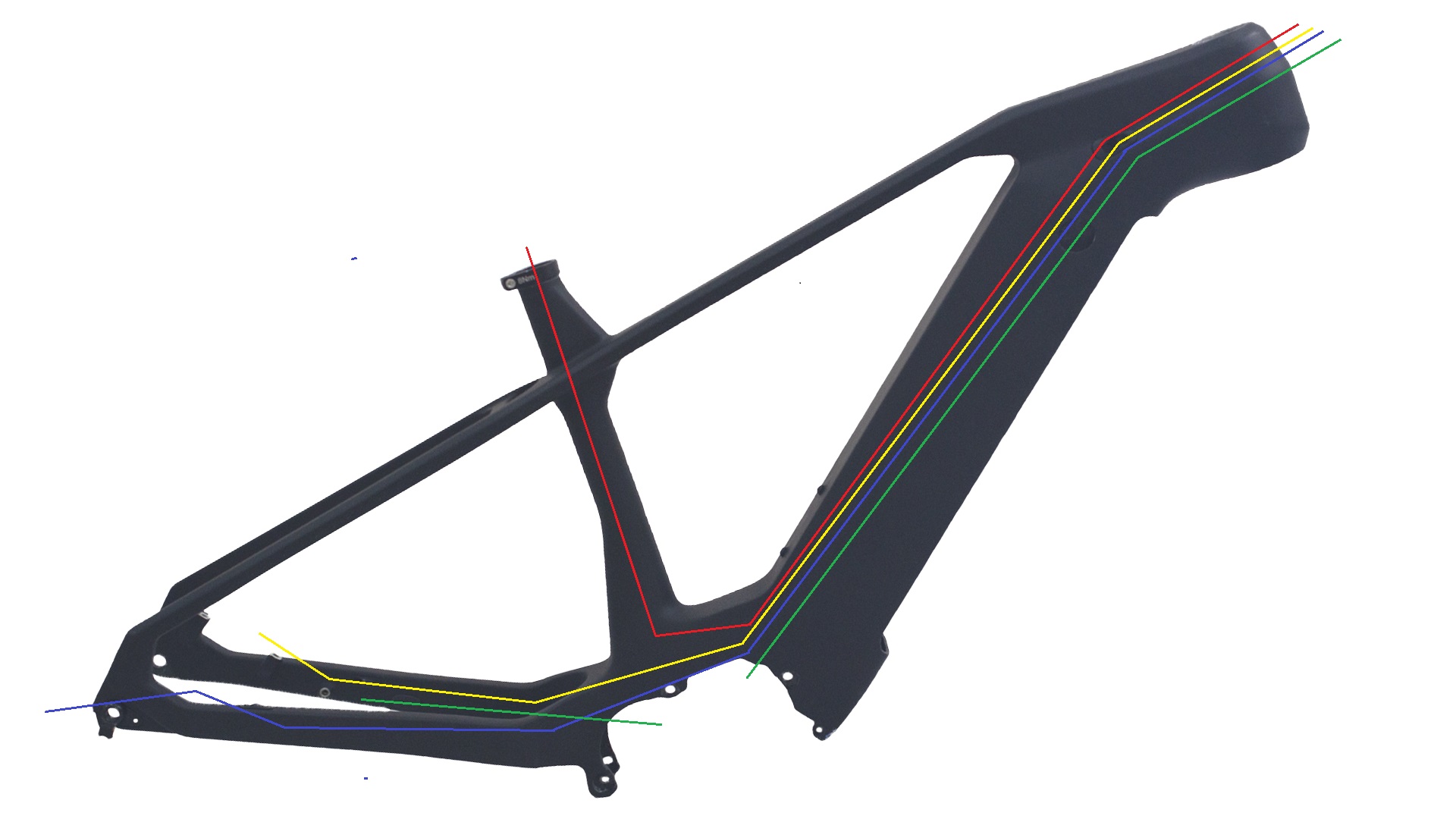

Red: Dropper seatpost control line(from right of headtube to dropper Seatpost)

Yellow: Rear brake(from left of headtube to the left of chainstay)

Blue: Rear derailleur(from right of headtube to right of chainstay)

Green: Speed sensor(from right of headtube to motor then to the right of chainstay)

TECHNOLOGY

	Italy Design Team we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.
	3D latex mandrel technology we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.
	Carbon Fiber Material Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.  Combining with stable resin system to make consistent quality and light weight frame.
	Lab Test All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.
	2-Year Warranty We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty  to see more details in another page.

Why choose us ?

-Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.

-Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services.

-More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.

Q1:What are electric bike frames made of?

A1:Most road e-bikes,nountain e-bike,gravel e-bike are using carbon fiber frames. Carbon fiber is made mainly by bonding multiple sheets of this material in a mold with the help of a resin.Such as Toray carbon fiber material and so on.

Q2:Does any bike can be turned into an electric bike?

A2:Yes, any bike can be turned into an e-bike,you can add a motor to either the front or rear wheel of the bike.. But if you're going to use a powerful motor, then you'll need to consider whether the bike's frame and components can handle the stress.You also can check with the E-bike frame supplier.

Q3:How long do electric bike motors last?

A3:It is between 3 to 10 years

Q4:How far can an e-bike go?

A4:A Good e-bike can range varies somewhere between 40-100 miles.

Q5:Can you ride an ebike without the battery?

A5:Yes, all electric bikes function as normal bike when the motor is off, so you can simply ride your electric bike in the same way of a traditional bicycle,it will not hurt motor or battery.But keep the bike clean is also importantant.

Q6: Can I charge an electric bike with a solar panel?

A6:Yes, you can definitely charge an electric bike with a solar panel.
