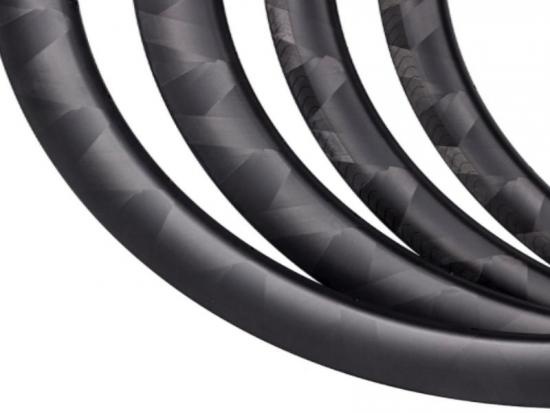

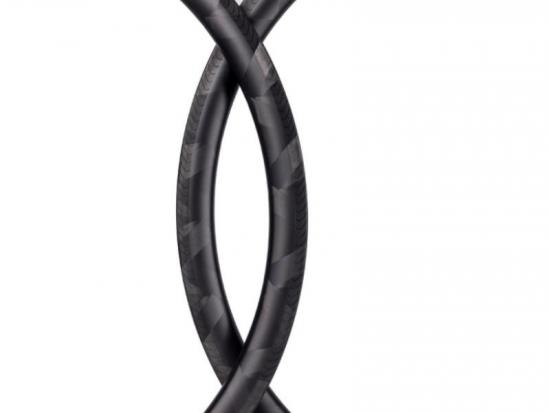

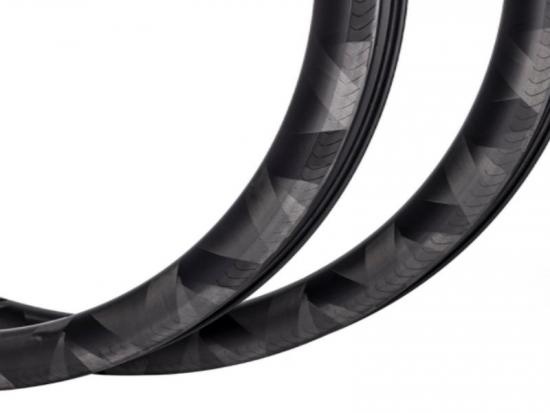

TDC-RB01 NEW UD X carbon weave rim aero one brake surface 40mm Depth 19.5mm internal width

TDC-RB01 NEW UD X carbon weave rim aero one brake surface 40mm Depth 19.5mm internal width

Rims:

• Modle:TDC-RB01
• Size:700C
• Use:Road rim brake
• Type:tubeless

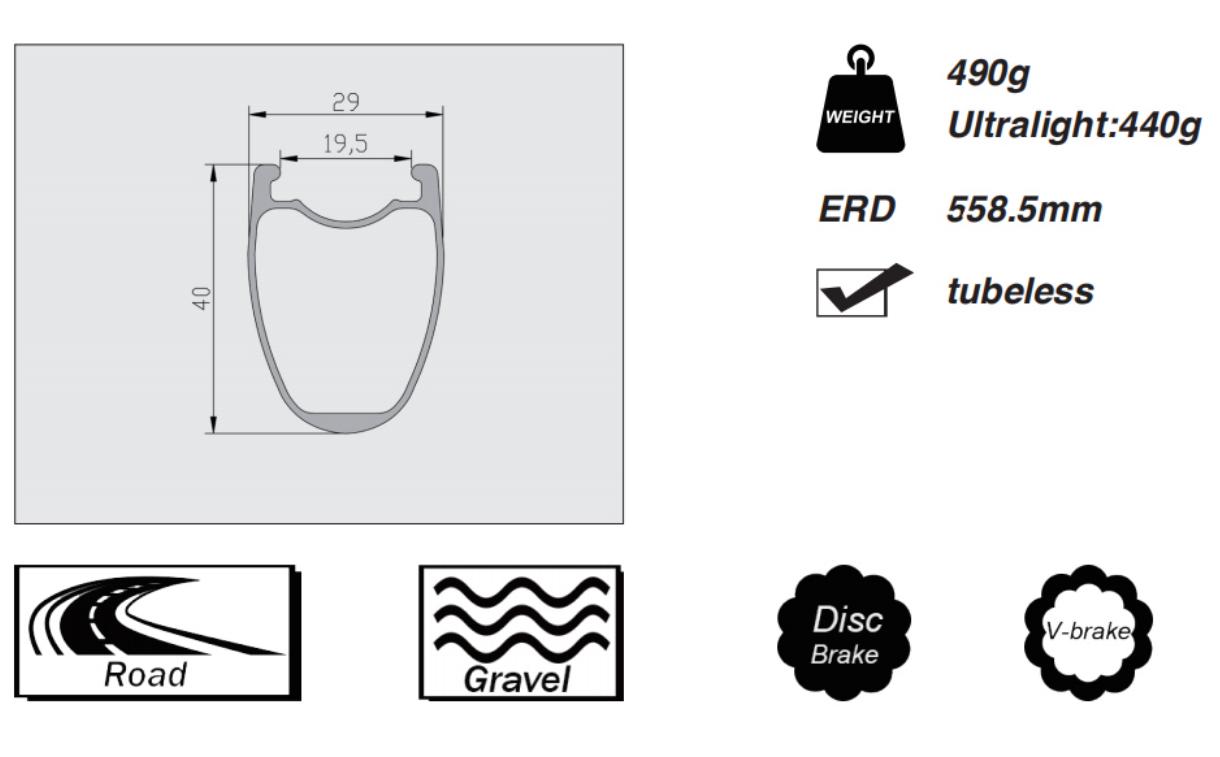

• Inner width:19.5mm
• Outer width:29mm
• Depth:40mm
• ERD:558.5mm (not including nipple head dimension)
• Weight:490+/-15g(clincher&tubeless)
• Weight Limit:130kg
• Spoke holes:16/18/20/21/24/28/32H
• Spoke Hole Angle±7°
• Spoke Tension:100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear
• Tyre Pressure:130psi recommended max
• Tire:25C~38C recommended

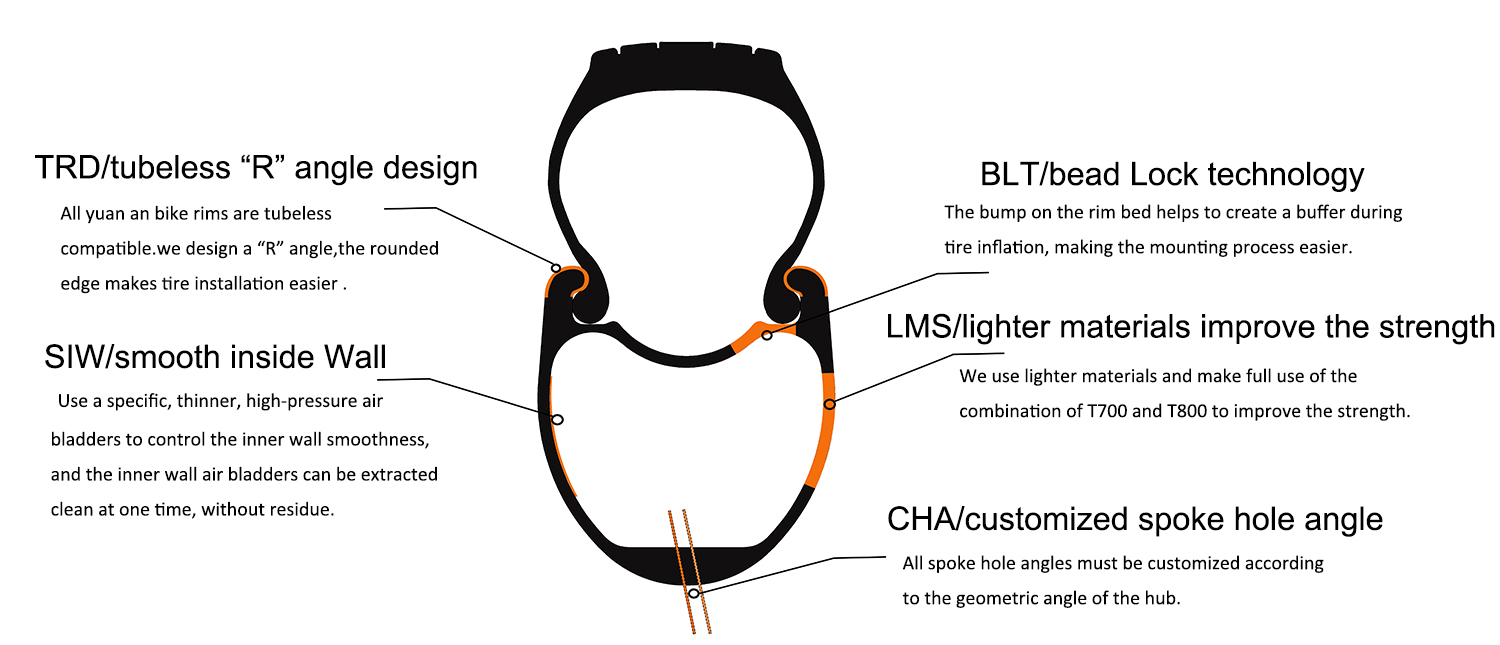

CHA/Customized spoke hole angle

All spoke hole angles must be customized according to the geometric angle of the hub.all drilled holes are inspected to ensure they are free of burrs.You can request a customized drilling pattern if you have a unique wheel build.

TRD/Tubeless R angle design

All TDC bike are tubeless compatible.We design a R angle,The rounded edge makes tire installation easier and offers increased support during hard cornering with a softer edge and larger surface area.

LMS/lighter materials improve the strength

We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.

SIW/smooth Inside Wall

We use a specific, thinner, high-pressure air bladders to control the inner wall smoothness, and the inner wall air bladders can be extracted clean at one time, without residue, not only effectively improve the tightness of the carbon fiber yarn, but also allow the spoke cap to be more tightly integrated with the spoke hole.

OPT/one piece technology

Compared to the technology of 3 piece, our one piece tech is more technically difficult and takes longer to produce, but the rigidity of the rim is at least 7% higher.

BLT/Bead Lock technology

The bump on the rim bed helps to create a buffer during tire inflation, making the mounting process easier. When the tire is mounted, the raised portion reinforces the tire bead, making it harder to “burp” or fall back into the drop channel.

Why choose us ?

-Tour De Cycling has more than 17 years of production experience in carbon rims developing and manufacturing.

-Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services. -More than 100 kinds of rims products have been developed and produced, and more than 95% of them are exported overseas.

FAQ:

Q1: Do you provide OEM service?

A1: Yes, we have been focusing on carbon fiber wheel production, research and development, design, OEM for more than ten years, from carbon fiber material production, carbon fiber wheel production, frame production, accessory production, and weaving wheels. More than 100 employees. At the same time, we also invest a lot of time and research and development expenses every year to develop hubs with more than 10 hub factories, in order to make every part of the carbon fiber wheel set, not just the carbon fiber rim. So what you can get from our company is a complete set of carbon fiber wheels. No need to bother to find suppliers in every link.

Q2: Can I get rims with custom spoke count? custom hole angle?

A2: Yes, we are able to custom drill any spoke count, and most rims can have a custom hole angle. Please contact us, we will check it for you accordingly.

Q3: What tyre pressures should I run?

A3: The best tyre pressure for your bike depends on many factors: the rim width, the kind of bike, the kind of tyres, rider weight, road conditions and weather conditions. Please click this link to see "the correct tyre pressure for your bicycle tyres".

Q4: How strong are your carbon rims? What happens if I break one?

A4: Every piece our carbon rim has been strict tested before shipment, has the best impact strength. Because of this we offer 2 YEARS WARRANTY on all carbon rims. For specific details on how the warranty works, please reference our warranty policy page.

Q5: What are your recommended spoke tensions?

A5: We recommend 110-130kgf on all carbon rims / wheels.

Q6: Are your clincher rims tubeless ready?

A6: All yuan an clincher rims are tubeless ready.

Q7: Do you offer custom rim mold (OEM)?

A7: Tour de Cycling is a professional manufacturer of carbon rims and is dedicated to continuous improvement. We are able to assist you with development of your OE product as well as quality testing and manufacture, and offer competitive OEM prices. We pride ourselves on our honesty, quality and integrity. And the long lasting relationships we hold with our current clientele around the globe is testament to this. Mold cost: by quote, please contact us at: sales@tourdecycling.com.

Q8: Do you offer custom graphics/decal design?

A8: If you want to have a custom graphic, we can create and install your design on the rims. Custom graphics/decal are applied after the rim sanding process and then covered with matte or glossy clear coat. This makes the graphics/decal more durable, however they are not removable. For the custom graphics/decal, please email us the details.

Q9: Do you offer complete wheel building?

A9: Yes, our goal is to provide extremely high quality carbon wheels and services through careful quality control and parts selection.
