TDC-TT47 Factory Supply Time Trial Disc Brake Carbon Frame

Time Trial Carbon Frameset

• Type: Time Trial 700C Disc Brake
• Size: 430/460/490/520/550/580 (C to T)
• Head Tube: Tapered 1-1/8’’ - 1-1/2”
• Bottom Bracket: BB386
• Seat Post: TDC-E21
• Fork model: TDC-F41
• Cable Routing: Internal and Di2 compatible
• Brake type: Direct mount
• Tire Spec.: 700*28C
• Hub Spec.: TA 12x100mm / 12x142mm
• Weight:1285g+/-35g(M Size)
• Material : Toray T800 / T700

Our this time trial bike frames are one of our hotsale carbon frames, it is  constructed from Toray T700 carbon fibre. Our this carbon time trial bike frames featured higher strength,  lighter weight and super stiff ,which can make your TT bike more professional and get good performance during racing.

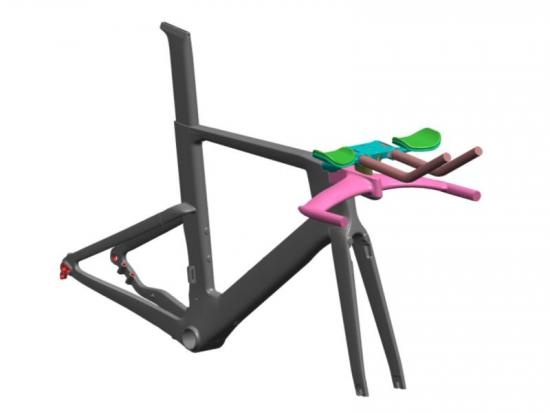

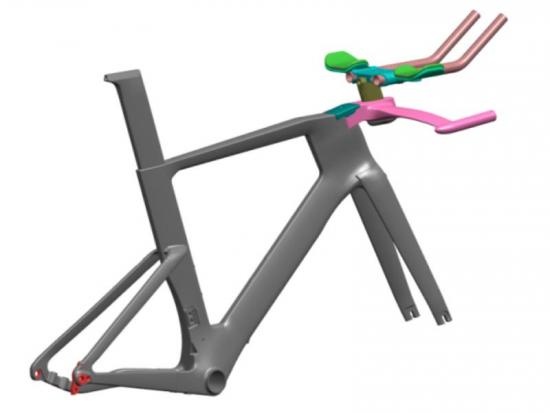

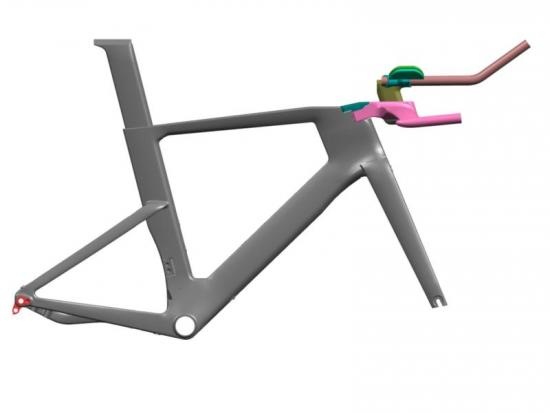

This frame only can matched our unique integrated carbon handle bar on below drawing, this integrated time trail handlebar can make it easy to assemble your bike and add the riding comfortable and controllability.

Looking down from the headtube we can see a hidden direct mount brake; this is the same at the back. Keeping your braking out of the wind and saving you a few watts as your power to your personal victory.

The long reach and short stack can keep your body low and stable and aerodynamic on bike.

The rigorous testing,performance-tuned, full carbon TT frameset has been aerodynamically optimised to enable you to achieve your perfect riding position.

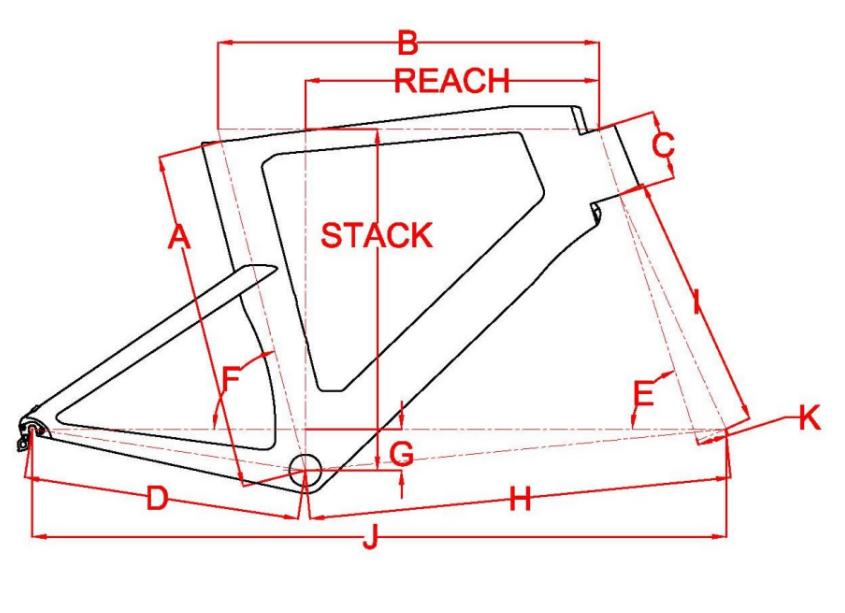

Many kinds of frame size for customer more option,please send email to sales@tourdecycling.com for more frames size geometry.

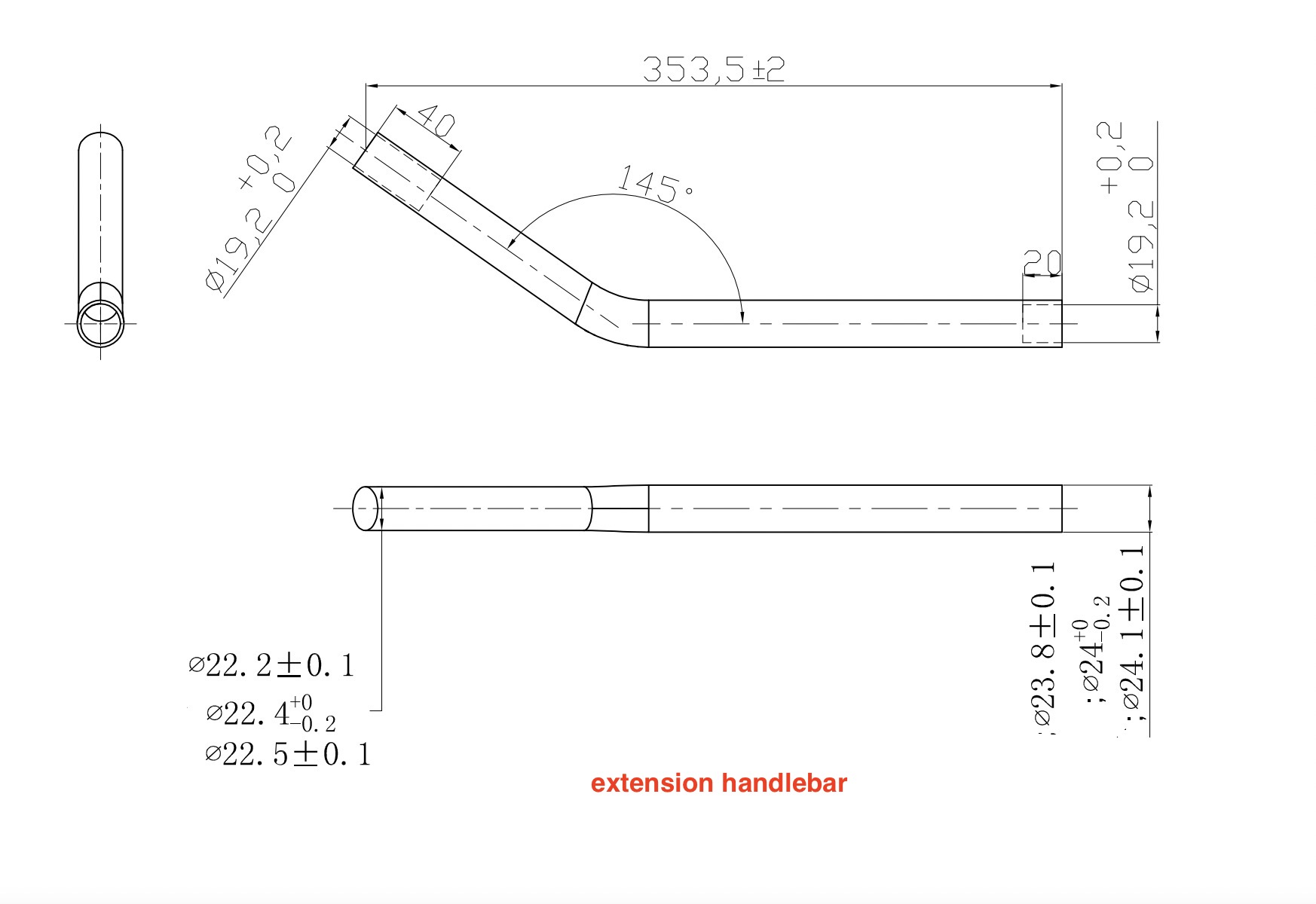

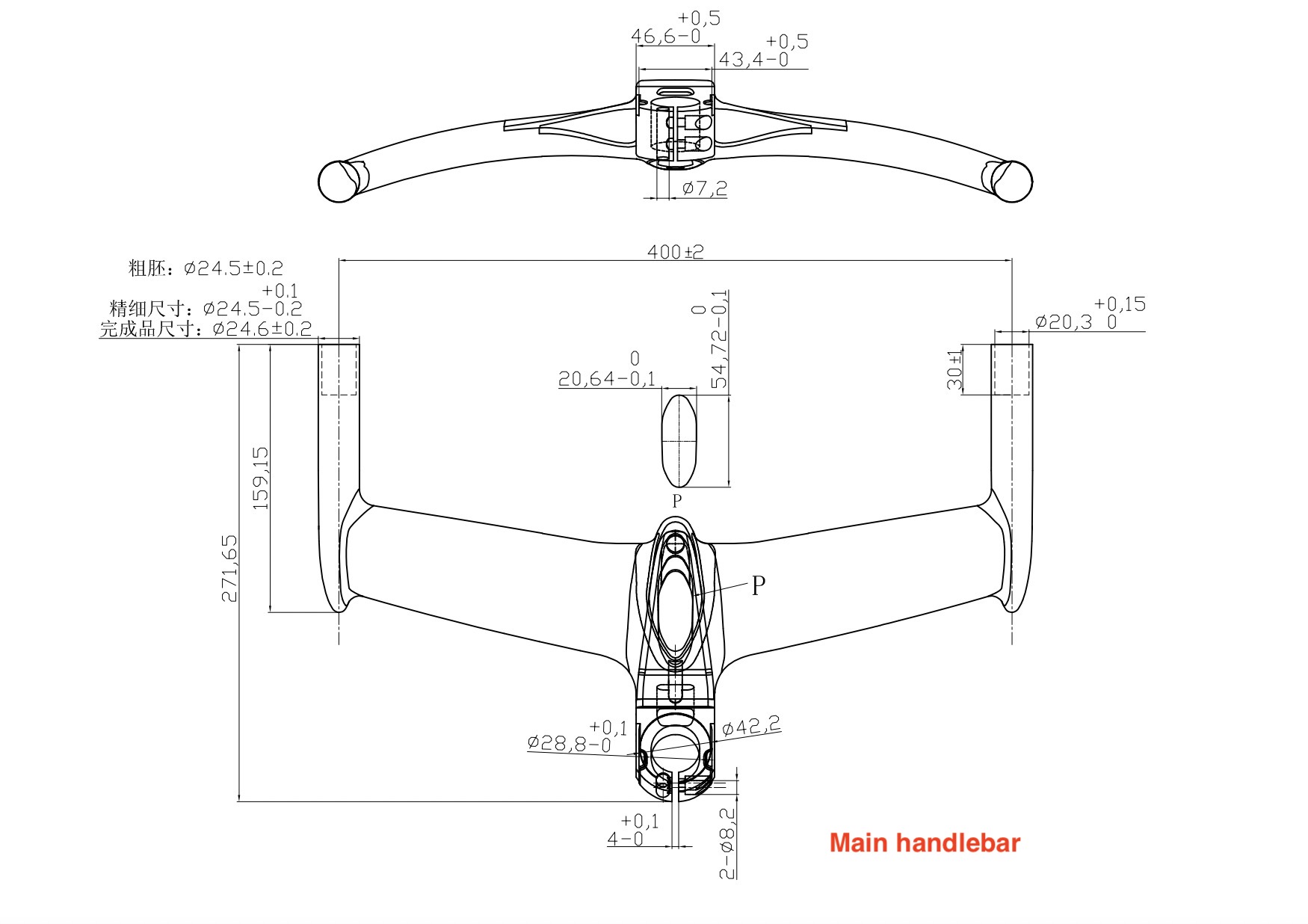

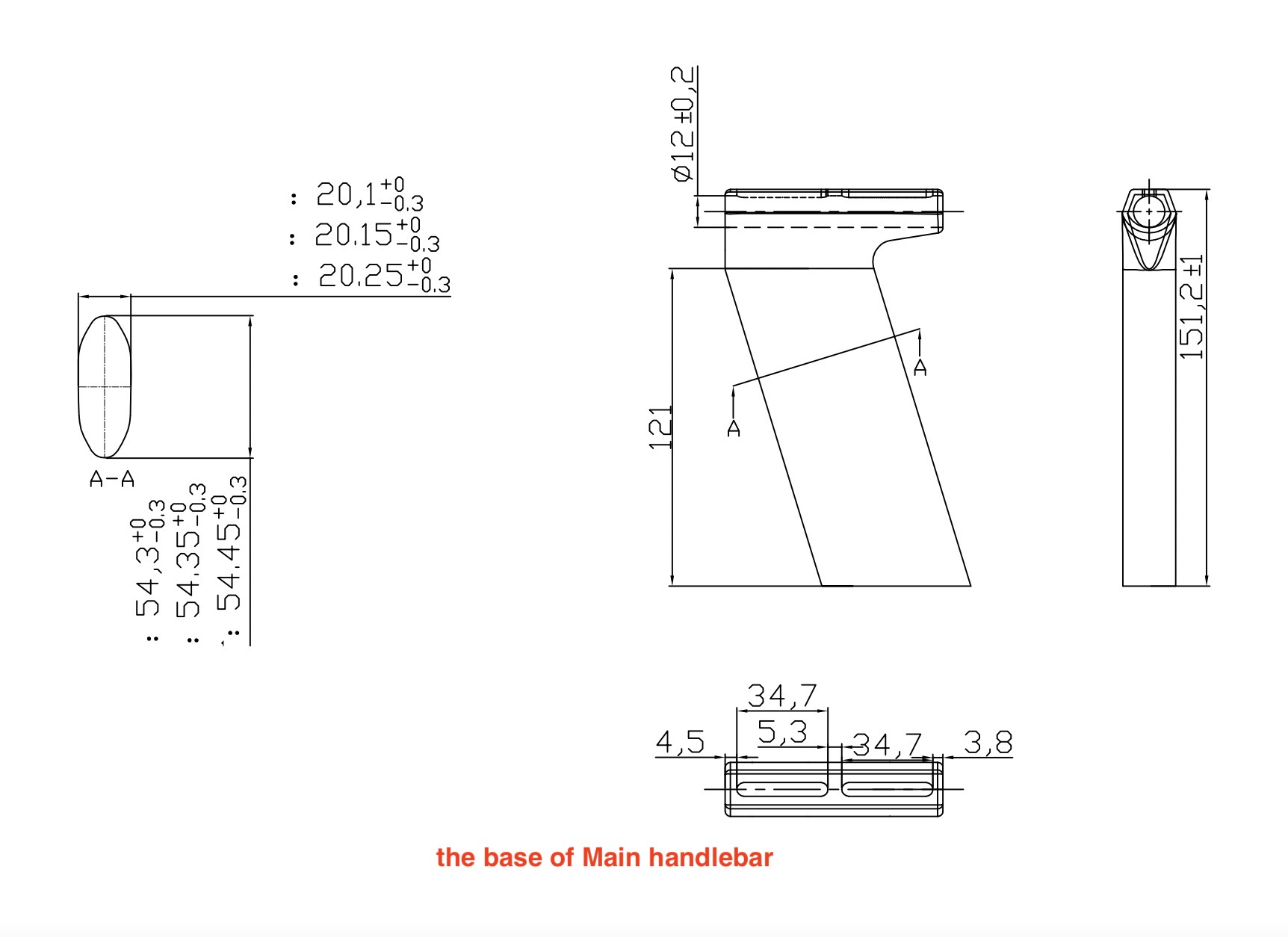

Technical drawings can help customer find the frame detail parameters and structure that they are interested.

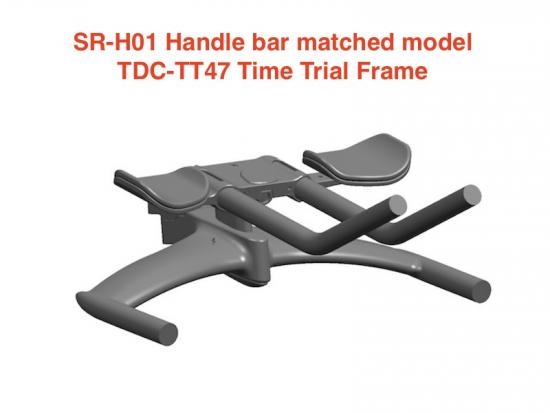

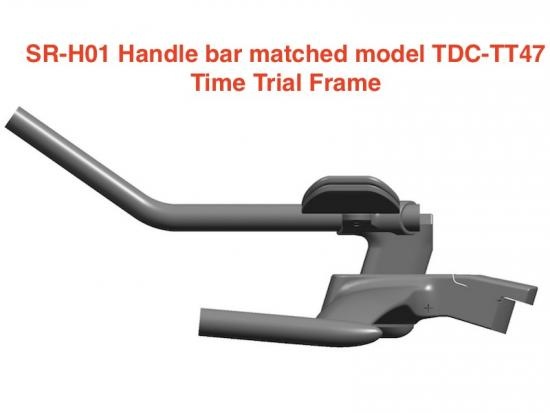

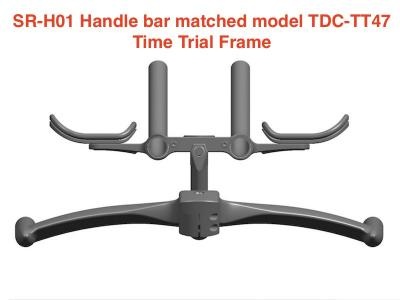

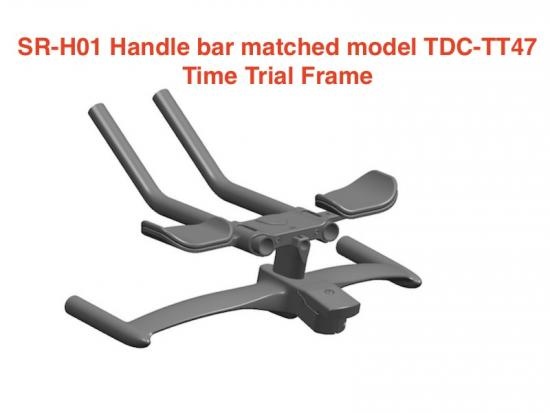

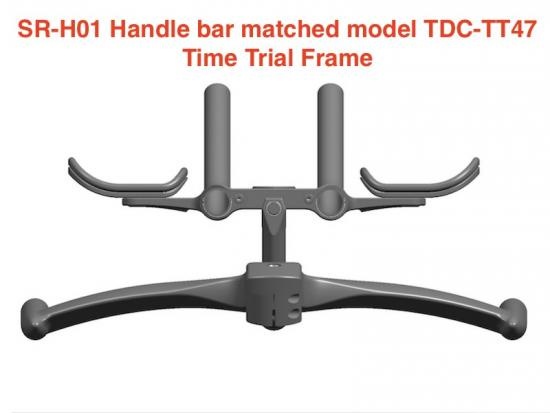

SR-H01 Handle bar matched model TDC-TT47 Time Trial Frame

TECHNOLOGY

	Italy Design Team we invited Italy professional engineer to develop new moulding each year. More than 10 years design experience can supply more accurate design which is developed according to the customer’s requests and specifications, focusing on the targets and providing functional solutions.
	3D latex mandrel technology we added new 3D latex mandrel technology. 3D latex mandrel technology than traditional EPS or airbag technology can make frames more smooth without wrinkle inner wall.
	Carbon Fiber Material Premium Japan Toray T700/T800 carbon fiber is used in our carbon bike frame.  Combining with stable resin system to make consistent quality and light weight frame.
	Lab Test All tour de cycling carbon frame are rigorously tested under international standard ISO4210/EN15194.We will also be sent sample to the 3rd External Organization for SGS testing upon customer’s requirement. All new frames will be tested at least 10% more strictly during the development phase on the basis of EN15194 or ISO4210, thus it can ensure the safety of all products.
	2-Year Warranty We have very strict mass production management system, IQC, PQC, OQC and Lab Testing process. We insist on making high quality. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty  to see more details in another page.

Why choose us ?

-Tour De Cycling has more than 17 years of production experience in carbon frame developing and manufacturing.

-Our factory has mature technology and patents, can be customized design for brand companies, and provide OEM services.

-More than 100 kinds of frame products have been developed and produced, and more than 95% of them are exported overseas.

FAQ:

Q1: Wonder if you accept small orders?

A1: Yes, we accept small trial orders. Besides, trial order's product quality is the same to massive production.

Q2: Can you send time trial bike frame samples to test?

A2: Sure, sample is welcomed, while the sample's fare and freight at your cost.

Q3: Can you do OEM/ODM for me?

A3: Yes, both is available, besides, we have design department, if you have problems, we can help solve them.

Q4: How can I place the order?

A4: Firstly, confirm PI and pay deposit,then we will arrange sample and massive production. After finished production, plz pay the balance before shipment. Then delivery the goods.

Q5: why the TT bike carbon frames are higher than carbon fibre racing bike Fram or carbon fibre MTB frames?

A5: Carbon Time trial bike frames is higher than road bike carbon frame. That is because the TT bike frames need more carbon fiber material to layer up to make sure the performance is high strength but light weight during racing. our TT frames are stricted test to make sure the frames are stable and safe when you are racing.

Q6: What is the lead time of the carbon fiber TT bike framesets?

A6: It cost about 25-30days.

Q7: People also ask whether time trial bike frames will become popular in future?

A7: Yes, it is;
